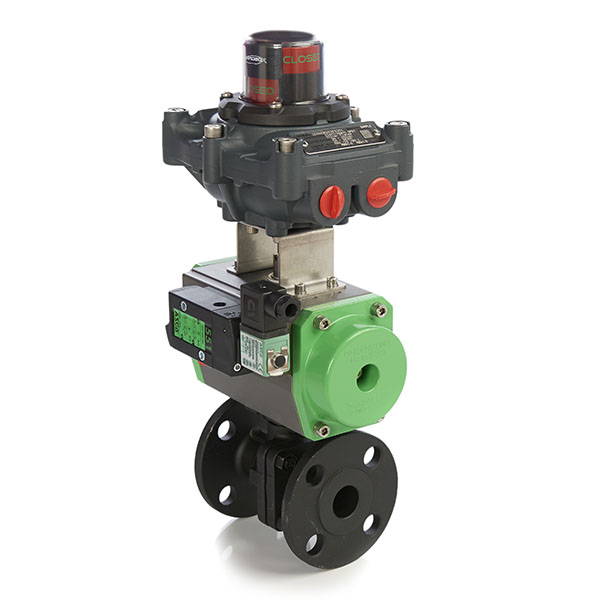

Actuated Carbon Steel Ball Valves
- Full or Reduced bore 2 way carbon steel ball valves
- Suitable for a variety of applications offering durability & reliability
- Available with a Pneumatic or Electric Actuator and range of additional accessories such as switchbox, solenoid, air-filter regulator, 4-20mA Electro Pneumatic Positioner.
- Fully assembled and tested.
Type
- Actuated Flanged Carbon Steel Floating Ball Valves
- Actuated Flanged Carbon Steel Trunnion Ball Valves
- Actuated BSP Carbon Steel Ball Valves
- Actuated Socket Weld Carbon Steel Ball Valves
- Actuated Butt Weld Carbon Steel Ball Valves
- Actuated Wafer Pattern Carbon Steel Ball Valves
Actuation Types
- Pneumatic Aluminium
- Pneumatic Nickel Plated
- Pneumatic PTFE Coated
- Pneumatic Stainless Steel
- Fail Closed Pneumatic Actuators
- Electric Actuator
- Electric Actuator Spring Return
- Electric Actuator Battery Back Up
Size & Connections
- 15mm (1/2”) to 900mm (36”)
- BSP, NPT, Socket Weld, Butt Weld
- DIN Flanged
- ANSI Flanged
- Flanged,
- RTJ
- Wafer Pattern
Duty
- Water
- Steam
- Gas
- Oil
- Alkalines
- Acids
- Solvents
- Fuel
Materials
- A105N/WCB, LF2/LCC,
- F1, F5, F9, F11, F22, F44, F51, F53, F55,
- 304/L, CF8/M, CF3/M, 316/L, 321, 347
- Monel, Inconel, Hastelloy
Temperature
- -196°c to 500°c according to pressure
Approvals/Certification/Design
Design Standards
- ASME B16.5, B16.10,B16.34, ISO 17292, API 6D, BS5351
Fire Safety Certification
- API607, API 6FA, ISO 10497, BS6755
Testing
- API 598 ISO 5208, API 6D, EN12266-1
Quality
- ISO 9001: 2015, ISO 14001: P.E.D – 2015
Pressure Equipment Directive
- PED: 2014/68/EU,
Safety Integrity Level
- SIL 2, SIL 3
Stem Sealing
- TA-LUFT
Explosion Rating
- ATEX
Ship Certification
- DNV GL,
Sour Service
- NACE MR-0175
Actuator Mounting (Direct & Non-Direct Mount
- Top flange ISO 5211
