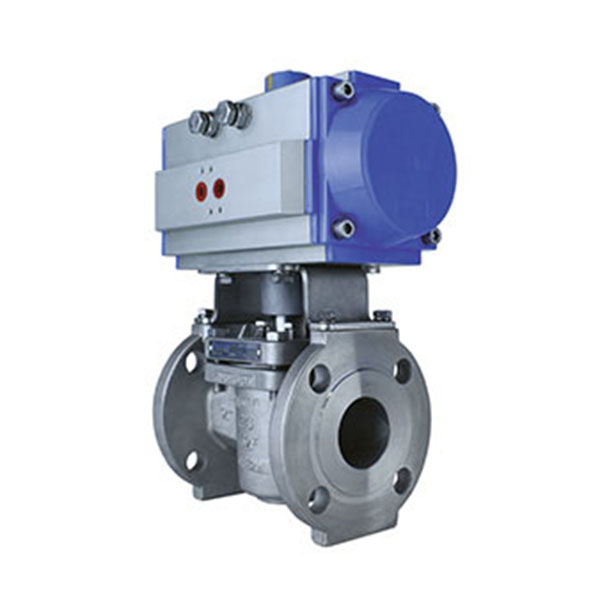

Flanged Plug Valve Stainless Steel with Pneumatic Actuator

Actuated Plug Valves



  • 2 way plug valves are suitable for a variety of specialist and difficult applications offering long life & robust service
  • Available with a Pneumatic or Electric Actuator and range of additional accessories such as switchbox, solenoid, air-filter regulator, 4-20mA Electro Pneumatic Positioner.
  • Fully assembled and tested
Category:

Type

  • Actuated Flanged Plug Valves
  • Actuated BSP Plug Valves
  • Actuated Socket Weld Plug Valves
  • Actuated 3 Way Plug Valves
  • Actuated Jacketed Plug Valves
  • Actuated Severe Service Plug Valves
  • Actuated Sleeved Plug Valves

Size and Connections

  • 15mm (1/2”) to 600mm (24”),
  • BSP, NPT, Socket Weld,
  • ANSI Flanged, Flanged

Duty

  • Petrochemical
  • Power
  • Pharmaceutical
  • Mining
  • Severe Service
  • Bitumen



Materials

A352 Gr. LCB, A352 Gr. LCC, A351 Gr. CF8, A351 Gr. CF3, A351 Gr. CF8M, A351 Gr. CF3M, A351 Gr. CG8M, A351 Gr. CG3M, 904L Stainless Steel Cast Grade, A995 Gr. 1B (CD4MCuN), A995 Gr. 4A (CD3MN) ,A995 Gr. 5A (CE3MN) ,A351 Gr. CK3MCuN,A351 Gr. CN3MN,A494 Gr. N7M, A494 Gr. N12MV, A494 Gr. CW6M, A494 Gr. CW12MW ,A494 Gr. CY40, A494 Gr. CW6MC, A494 Gr. M35-1, A494 Gr. CZ-100, B367 Gr. C2, B367 Gr. C3, B367 Gr. C5,B752 Gr. 702C,B752 Gr. 705C

Pressure Rating

  • 150lb, 300lb, 600lb,

Approvals/Certification/Design

Design Standards

  • ASME B16.5, B16.10, B16.11, B16.25 B16.34, B16.42

Fire Safety Certification

  • API607, ISO 10497,

Testing

  • API 598, API 599, EN12266-1

Quality

  • ISO 9001: 2015,

Pressure Equipment Directive

  • PED: 2014/68/EU,

Sour Service

  • NACE MR-0175

Actuator Mounting

  • Top flange ISO 5211
