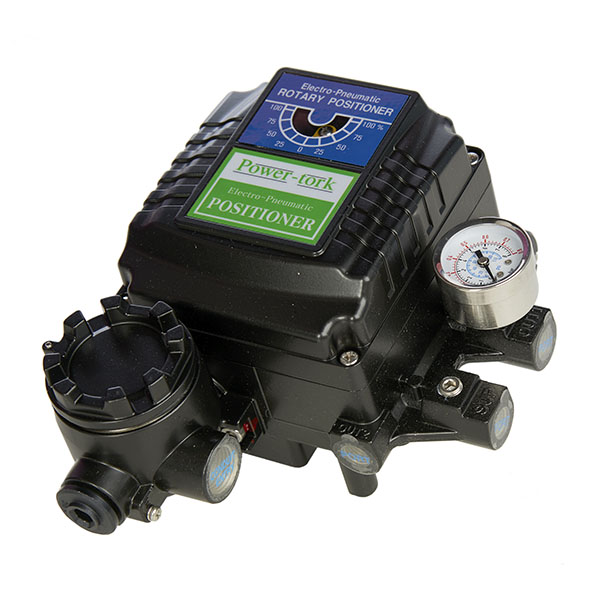

Aluminium Electro Pneumatic Analogue 4-20mA Positioner

Actuator Electro Pneumatic Positioners



  • To compliment our ‘Power-tork’ Pneumatic Actuator Range Omega Valves are able to supply a full range of 4-20mA Electro/Pneumatic Positioners and 3-15 psi Pneumatic/Pneumatic Positioners from Power-tork, Siemens & PMV
  • All of our actuated valve packages are assembled, tested and fitted with positioners in our purpose built test area offering fast next day delivery and a quick, reliable service.
  • We are able to set & calibrate positioners in house and fit with either nylon or stainless steel tubing as required.
Category:

Type

  • Aluminium 4-20mA Electro/Pneumatic Positioners
  • Aluminium 3-15 psi Pneumatic/Pneumatic Positioners
  • ATEX Aluminium 4-20mA Electro/Pneumatic Positioners
  • Stainless Steel 4-20mA Electro/Pneumatic Positioners
  • 4-20mA Electro Pneumatic Positioners with position feedback
  • Smart 4-20mA Electro Pneumatic Positioners

Size & Designs

  • Comes with multi height mounting bracket to suit most actuator sizes

Materials

  • Aluminium
  • Stainless Steel,

Air/Electrical Connections

  • M20, M25 or ¼”, ½” & ¾” NPT

Temperature

  • -20°c to +70°c (special Temperatures available on request)

Options Include

  • Integral or External Open Closed Mechanical Limit Switches
  • Position feedback module
  • Smart functions
  • Dome indicator

Approvals/Certification/Design

Enclosure

IP66-68

Quality

ISO 9001: 2015

Actuator Mounting

Top flange ISO 5211 DIN 3337
