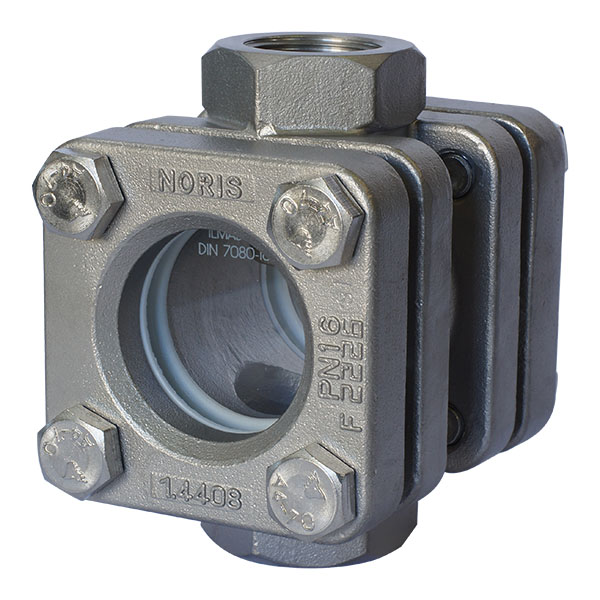

BSP Screwed Stainless Steel Sight Glasses

BSP Sight Glasses



  • Omega Valves can supply a wide range of sight glasses for viewing the contents and/or level of tanks, vessels or pipelines.
  • There are various types of installation available such as welding, bolting or clamping into your equipment.

Type

  • Screwed Sight Flow Indicators
  • Screwed Rectangular Tank Sight Glass Fitting
  • Screwed Circular Tank Sight Glass Fitting
  • Screwed Tubular Sight Flow Indicators

Size & Connections

  • 8mm (1/4”) to 200 mm (8”),
  • BSPP, NPT, Butt Weld, Socket Weld

Duty

  • Water
  • Steam
  • Liquids
  • Gases

Materials

Body Material

  • Carbon Steel
  • Stainless Steel
  • Duplex Stainless Steels and Hastelloy available on request

Glass Material

  • Soda-lime (DIN 8902), & Borosilicate

Pressure Rating

  • PN16/ASA 150 = 16 bar g
  • PN40/ASA 300 = 40 bar g

Temperature

  • According to pressure

Approvals/Certification/Design

Quality

ISO 9001: 2015, ISO 14001: P.E.D – 2015

Pressure Equipment Directive

PED: 2014/68/EU
