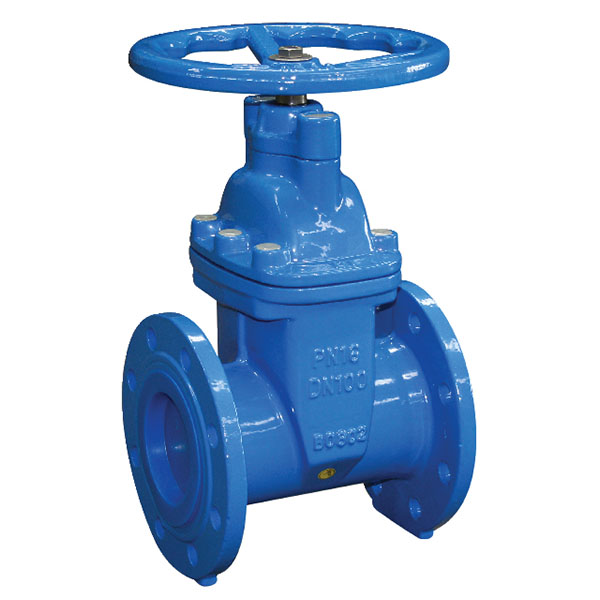

Cast Iron Gate Valve Flanged PN16 with Handwheel (painted blue)

Flanged Gate Valves



  • 2 way Gate valves which are suitable for a variety of applications offering durability & reliability.
  • Good sealing capabilities and low friction loss
  • Solid wedge design
Category:

Type

  • Flanged RF Gate Valves
  • ASA 150 Gate Valves
  • PN16 Gate Valves
  • RTJ Gate Valves
  • Bolted Bonnet Gate Valves
  • Welded Bonnet Gate Valves
  • Rising Stem Gate Valves
  • Non Rising Stem Gate Valves

Size & Connections

  • 15mm (1/2”) to 1800mm (72”)
  • ANSI Flanged
  • DIN Flanged
  • RTJ Flanged

Duty

  • Water
  • Steam
  • Gas
  • Oil
  • Alkalines
  • Acids
  • Solvents
  • Fuel

Materials

  • WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF3, CF8M, CF3M, CN7M, CF8C, A890-4A, A890-5A, A890-6A
  • A105N, LF2, F1, F5, F9, F11, F22, F44, F51, F53, F55, 304/L, 316/L, 321, 347
  • Monel, Inconel, Hastelloy, Cast Iron, Ductile Iron, Brass, Bronze

Pressure Rating

  • PN20, PN50, PN100, PN140, PN150, PN420, PN760
  • 300lb, 600lb, 800lb, 900lb, 1500lb, 2500lb



Temperature

  • Dependent on pressure & temperature

Approvals/Certification/Design

Design Standards

API 600, API 603, ANSI B16.34,API 602, BS 5352, BS EN 1092-2 PN16, DIN3204 F4, BS10 TABLE E or D, BS3464, BS5150 (EN1171) BS EN558-1 Series 3

Testing

API 598, BS 6755 PT1

Quality

ISO 9001: 2015, ISO 14001: P.E.D – 2015

Pressure Equipment Directive

PED: 2014/68/EU,
