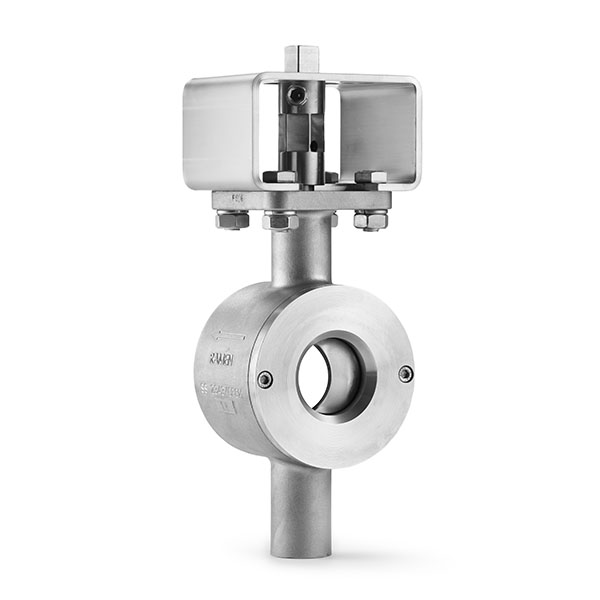

Stainless Steel Wafer Ball Sector Valve Bareshaft with Actuator Mounting Bracket

General Purpose Ball Sector Valves


  • Full or Reduced bore 2 way ball sector valves
  • Suitable for a variety of applications offering durability & reliability.
  • A really good solution for control and on/off applications on difficult and viscous duties where a conventional ball valve would not suit.
  • Available with a Pneumatic or Electric Actuator and range of additional accessories such as switchbox, solenoid, air-filter regulator, 4-20mA Electro Pneumatic Positioner.
  • Fully assembled and tested.


  • Flanged Ball Sector Valve Stainless Steel
  • Wafer Ball Sector Valve Stainless Steel
  • Ball Sector Valve On/Off
  • Ball Sector Valve Control


Size & Connections

  • 15mm (1/2”) to 300mm (12”)
  • DIN Flanged,
  • ANSI Flanged,
  • DIN Wafer Pattern
  • ANSI Wafer Pattern



  • Clean and non-abrasive liquids
  • Clean water, oil and non-abrasive
  • Suspensions Gases and vapors
  • Nitrogen (N2), oxygen (O2), natural
  • Gas, Air, Steam, Slurry


  • AISI 316 Body & PTFE Seat (standard)
  • EPDM, Nitril, Kalrez®, Viton GLT, EPDM
  • 304, 316L, 254 SMO, Hastelloy, Duplex, Super Duplex White PTFE, PEEK, FDA Approved (options)

Pressure Rating

  • PN16, PN25, PN40
  • 150lb, 300lb, 600lb


  • -40°c to 250°c according to pressure



ISO 9001: 2015, ISO 14001: P.E.D – 2015
